C&汇编基础-数据类型02

全局变量与局部变量

1. 全局变量和局部变量表现形式

源码

#include "stdafx.h"
int g_n1;
int g_n2 = 0x12345678;

void Function1()
{
	//读取全局变量
	int x = g_n1;
	int y = g_n2;
	//写全局变量
	g_n1 = 1;
	g_n2 = 2;
}

int main(int argc, char* argv[])
{
	Function1();
    return 0;
}

反汇编

0040EBA0   push        ebp
0040EBA1   mov         ebp,esp
0040EBA3   sub         esp,48h
0040EBA6   push        ebx
0040EBA7   push        esi
0040EBA8   push        edi
0040EBA9   lea         edi,[ebp-48h]
0040EBAC   mov         ecx,12h
0040EBB1   mov         eax,0CCCCCCCCh
0040EBB6   rep stos    dword ptr [edi]

//********int x = g_n1;(读取全局变量)*****//
0040EBB8   mov         eax,[g (00427958)]
0040EBBD   mov         dword ptr [ebp-4],eax

//********int y = g_n2;*****//
0040EBC0   mov         ecx,dword ptr [g_n2 (00426a6c)]
0040EBC6   mov         dword ptr [ebp-8],ecx

//********g_n1 = 1;(写全局变量)*****//
0040EBC9   mov         dword ptr [g (00427958)],1

//********g_n2 = 2;*****//
0040EBD3   mov         dword ptr [g_n2 (00426a6c)],2

0040EBDD   pop         edi
0040EBDE   pop         esi
0040EBDF   pop         ebx
0040EBE0   mov         esp,ebp
0040EBE2   pop         ebp
0040EBE3   ret

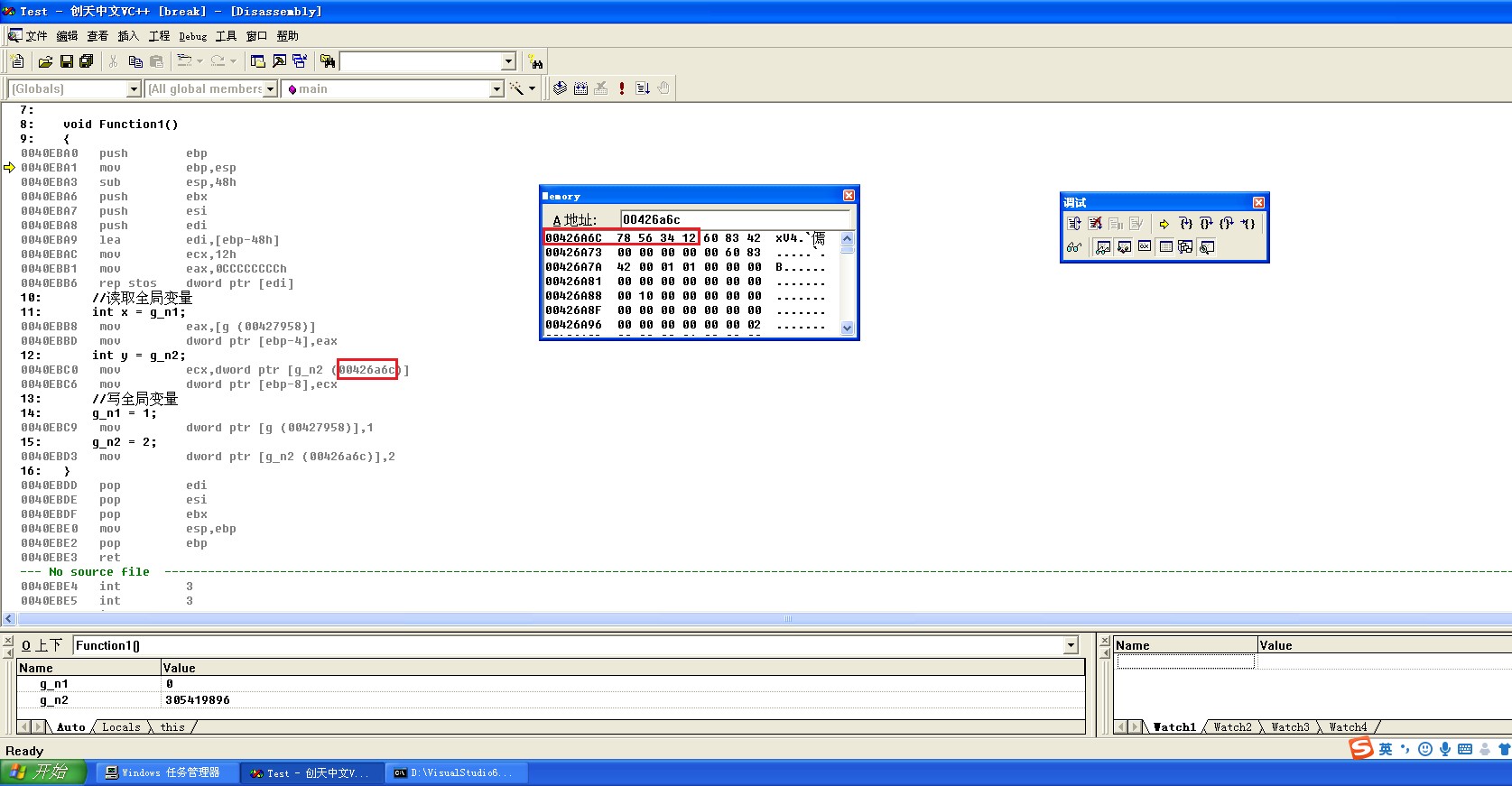

从全局变量和局部变量的表现形式来看：全局变量是一个内存地址；局部比变量是 [ebp-xxx]

全局变量可以从其他函数中进行读写

2. 全局变量的初始值

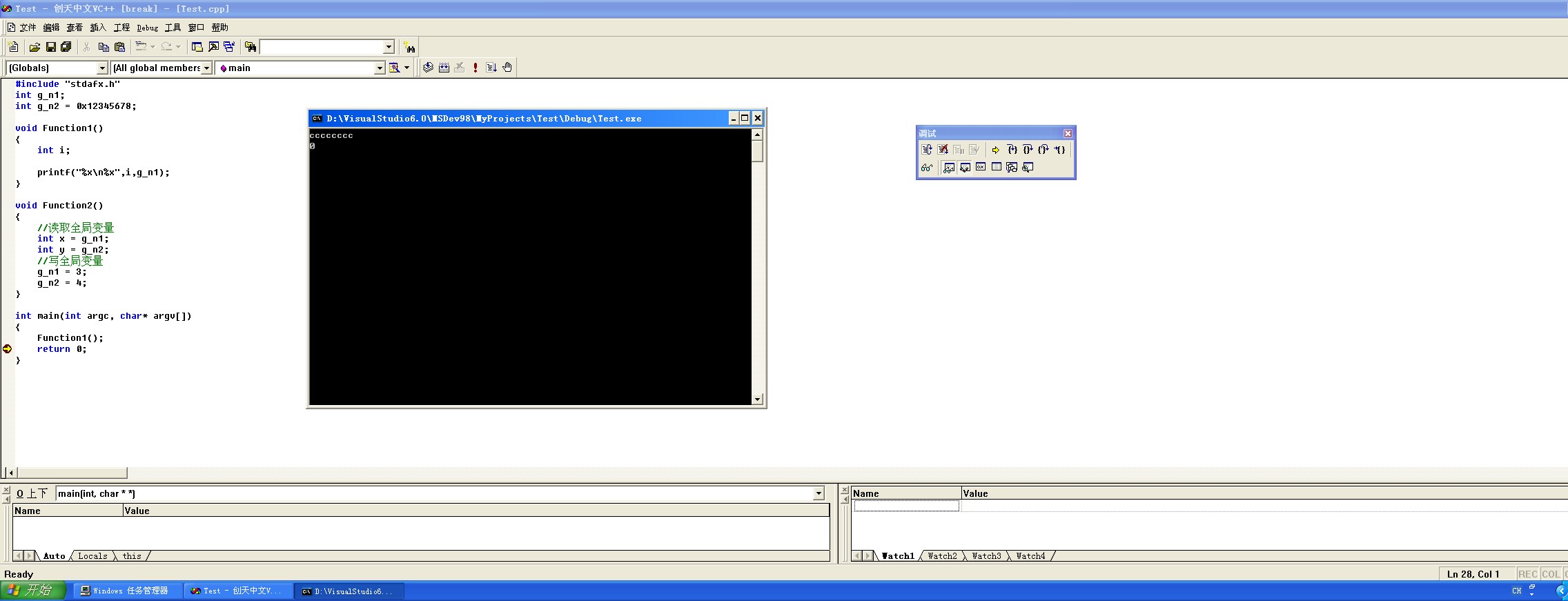

全局变量如果不赋值时，它的初始值为 0

3. 全局变量和局部变量的分配

局部变量默认不分配值，需要设定初始值。

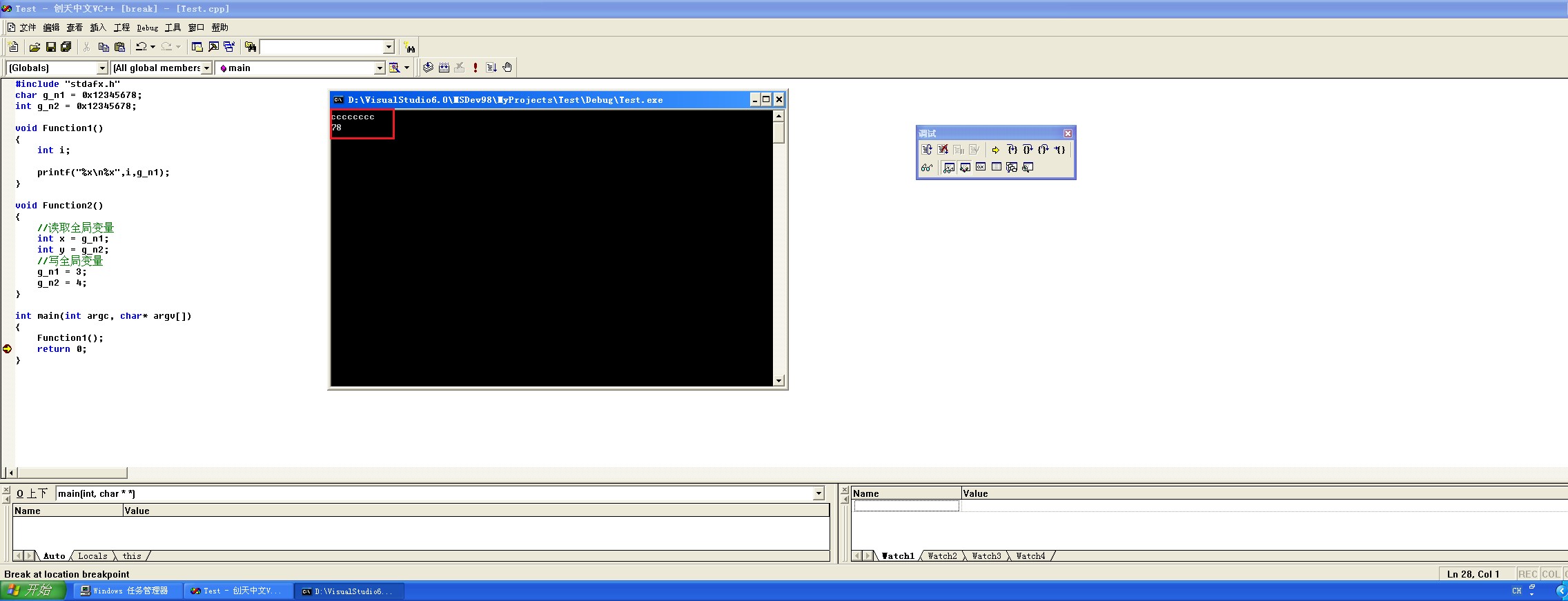

全局变量可以看做是一个地址，它的位置是不会变的，同时也说明全局变量是在程序编译的时候就已经定好了位置。所以全局变量是在程序编译以后就已经预留空间，空间大小由类型决定，且位置不会发生变化。

局部变量是[ebp-xxx]形式，当每次调用函数的时候ebp都会变化，同时函数结束后函数内的数据都将会变成垃圾数据。所以局部变量只有当函数调用时才会分配空间，且一定要有初始值。

3. 全局变量和局部变量的作用范围

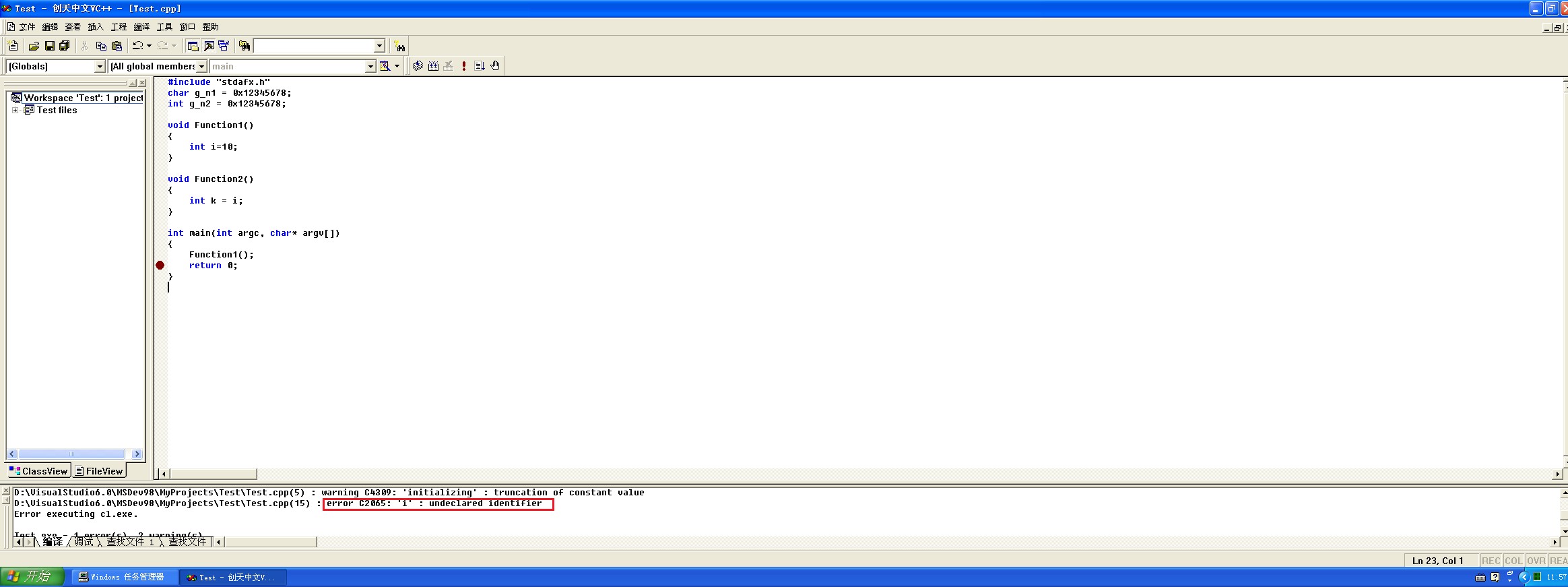

这里编译的时候提示报错： i 是未定义的标识符，也就是函数 Function2() 找不到变量i

局部变量作用范围仅限于当前函数自己，其他函数无法使用

数据类型转换

有符号数小转大

1. 源码

   //有符号小转大
   void Function1()
   {
   	char ci = 0xFF;
   	short si = ci;
   	int ni = ci;
   }

2. 反汇编

   0040EBA0   push        ebp
   0040EBA1   mov         ebp,esp
   0040EBA3   sub         esp,4Ch
   0040EBA6   push        ebx
   0040EBA7   push        esi
   0040EBA8   push        edi
   0040EBA9   lea         edi,[ebp-4Ch]
   0040EBAC   mov         ecx,13h
   0040EBB1   mov         eax,0CCCCCCCCh
   0040EBB6   rep stos    dword ptr [edi]

   //********char ci = 0xFF;*****//
   0040EBB8   mov         byte ptr [ebp-4],0FFh

   //********short si = ci;*****//
   0040EBBC   movsx       ax,byte ptr [ebp-4]
   0040EBC1   mov         word ptr [ebp-8],ax

   //********int ni = ci;*****//
   0040EBC5   movsx       ecx,byte ptr [ebp-4]
   0040EBC9   mov         dword ptr [ebp-0Ch],ecx

   0040EBCC   pop         edi
   0040EBCD   pop         esi
   0040EBCE   pop         ebx
   0040EBCF   mov         esp,ebp
   0040EBD1   pop         ebp
   0040EBD2   ret

有符号小转大是通过 movsx 指令对变量进行扩展的。movsx 是先获取符号位，也就是二进制的最高位，然后再对扩展位进行填充。

无符号数小转大

1. 源码

   //无符号小转大
   void Function2()
   {
   	unsigned char ci = 0xFF;
   	unsigned short si = ci;
   	unsigned int ni = ci;
   }

2. 反汇编

   0040EB30   push        ebp
   0040EB31   mov         ebp,esp
   0040EB33   sub         esp,4Ch
   0040EB36   push        ebx
   0040EB37   push        esi
   0040EB38   push        edi
   0040EB39   lea         edi,[ebp-4Ch]
   0040EB3C   mov         ecx,13h
   0040EB41   mov         eax,0CCCCCCCCh
   0040EB46   rep stos    dword ptr [edi]

   //********unsigned char ci = 0xFF;*****//
   0040EB48   mov         byte ptr [ebp-4],0FFh

   //********unsigned short si = ci;*****//
   0040EB4C   movzx       ax,byte ptr [ebp-4]
   0040EB51   mov         word ptr [ebp-8],ax

   //********unsigned int ni = ci;*****//
   0040EB55   mov         ecx,dword ptr [ebp-4]
   0040EB58   and         ecx,0FFh
   0040EB5E   mov         dword ptr [ebp-0Ch],ecx

   0040EB61   pop         edi
   0040EB62   pop         esi
   0040EB63   pop         ebx
   0040EB64   mov         esp,ebp
   0040EB66   pop         ebp
   0040EB67   ret

   无符号小转大是通过 movzx 指令对变量进行扩展的。movzx 是直接对扩展位填充0。

变量从大转小

1. 源码

   void Function1()
   {
   	int ni = 0x12345678;
   	short si = ni;
   	char ci = ni;
   }

2. 反汇编

   0040EBA0   push        ebp
   0040EBA1   mov         ebp,esp
   0040EBA3   sub         esp,4Ch
   0040EBA6   push        ebx
   0040EBA7   push        esi
   0040EBA8   push        edi
   0040EBA9   lea         edi,[ebp-4Ch]
   0040EBAC   mov         ecx,13h
   0040EBB1   mov         eax,0CCCCCCCCh
   0040EBB6   rep stos    dword ptr [edi]

   //********int ni = 0x12345678;*****//
   0040EBB8   mov         dword ptr [ebp-4],12345678h

   //********short si = ni;*****//
   0040EBBF   mov         ax,word ptr [ebp-4]
   0040EBC3   mov         word ptr [ebp-8],ax

   //********char ci = ni;*****//
   0040EBC7   mov         cl,byte ptr [ebp-4]
   0040EBCA   mov         byte ptr [ebp-0Ch],cl

   0040EBCD   pop         edi
   0040EBCE   pop         esi
   0040EBCF   pop         ebx
   0040EBD0   mov         esp,ebp
   0040EBD2   pop         ebp
   0040EBD3   ret

从大转到小使用的是 mov 指令，把大的值存到小的寄存器中，然后再将小的寄存器的值存到局部变量中，进行转换的。

一维数组

1. 源码

   void Function()
   {
   	//数组定义
   	int arr[10] = {1,2,3,4,5,6,7,8,9,10};
   	//数组的读取
   	int x = arr[0];
   	int y = arr[1];
   	int z = arr[2];

   	//数组的写入
   	arr[3] = 20;
   }

2. 反汇编

   //********void Function()*****//
   00401020   push        ebp
   00401021   mov         ebp,esp
   00401023   sub         esp,74h
   00401026   push        ebx
   00401027   push        esi
   00401028   push        edi
   00401029   lea         edi,[ebp-74h]
   0040102C   mov         ecx,1Dh
   00401031   mov         eax,0CCCCCCCCh
   00401036   rep stos    dword ptr [edi]


   //********int arr[10] = {1,2,3,4,5,6,7,8,9,10};*****//
   00401038   mov         dword ptr [ebp-28h],1
   0040103F   mov         dword ptr [ebp-24h],2
   00401046   mov         dword ptr [ebp-20h],3
   0040104D   mov         dword ptr [ebp-1Ch],4
   00401054   mov         dword ptr [ebp-18h],5
   0040105B   mov         dword ptr [ebp-14h],6
   00401062   mov         dword ptr [ebp-10h],7
   00401069   mov         dword ptr [ebp-0Ch],8
   00401070   mov         dword ptr [ebp-8],9
   00401077   mov         dword ptr [ebp-4],0Ah

   //********int x = arr[0];*****//
   0040107E   mov         eax,dword ptr [ebp-28h]
   00401081   mov         dword ptr [ebp-2Ch],eax

   //********int y = arr[1];*****//
   00401084   mov         ecx,dword ptr [ebp-24h]
   00401087   mov         dword ptr [ebp-30h],ecx

   //********int z = arr[2];*****//
   0040108A   mov         edx,dword ptr [ebp-20h]
   0040108D   mov         dword ptr [ebp-34h],edx


   //********arr[3] = 20;*****//
   00401090   mov         dword ptr [ebp-1Ch],14h

   00401097   pop         edi
   00401098   pop         esi
   00401099   pop         ebx
   0040109A   mov         esp,ebp
   0040109C   pop         ebp
   0040109D   ret

数组的存储形式类似于变量都是 [ebp-xxx]，数组的存储是从栈的低地址向高地址存储。数组的大小是根据中括号中的常量来判断的。

空数组

1. 源码

   void plus()
   {
   	int arr3[5];

   }

2. 反汇编

   00401190   push        ebp
   00401191   mov         ebp,esp
   00401193   sub         esp,54h
   00401196   push        ebx
   00401197   push        esi
   00401198   push        edi
   00401199   lea         edi,[ebp-54h]
   0040119C   mov         ecx,15h
   004011A1   mov         eax,0CCCCCCCCh
   004011A6   rep stos    dword ptr [edi]
   004011A8   pop         edi
   004011A9   pop         esi
   004011AA   pop         ebx
   004011AB   mov         esp,ebp
   004011AD   pop         ebp
   004011AE   ret

函数中的空数组在在反汇编中没有任何数据显示

数组[变量]

char 型

1. 源码

   void plus()
   {
   	char arr1[3] = {1,2,3};
   	char i=0;
   	arr1[1]=arr1[i];

   }

2. 反汇编

   00401040   push        ebp
   00401041   mov         ebp,esp
   00401043   sub         esp,48h
   00401046   push        ebx
   00401047   push        esi
   00401048   push        edi
   00401049   lea         edi,[ebp-48h]
   0040104C   mov         ecx,12h
   00401051   mov         eax,0CCCCCCCCh
   00401056   rep stos    dword ptr [edi]
   00401058   mov         byte ptr [ebp-4],1
   0040105C   mov         byte ptr [ebp-3],2
   00401060   mov         byte ptr [ebp-2],3
   00401064   mov         byte ptr [ebp-8],0
   00401068   movsx       eax,byte ptr [ebp-8]
   0040106C   mov         cl,byte ptr [ebp+eax-4]
   00401070   mov         byte ptr [ebp-3],cl
   00401073   pop         edi
   00401074   pop         esi
   00401075   pop         ebx
   00401076   mov         esp,ebp
   00401078   pop         ebp
   00401079   ret

arr1[i] = [ebp+eax-4]

short 型

1. 源码

   void plus()
   {
   	short arr1[3] = {1,2,3};
   	short i=0;
   	arr1[1]=arr1[i];

   }

2. 反汇编

   00401040   push        ebp
   00401041   mov         ebp,esp
   00401043   sub         esp,4Ch
   00401046   push        ebx
   00401047   push        esi
   00401048   push        edi
   00401049   lea         edi,[ebp-4Ch]
   0040104C   mov         ecx,13h
   00401051   mov         eax,0CCCCCCCCh
   00401056   rep stos    dword ptr [edi]
   00401058   mov         word ptr [ebp-8],offset plus+1Ch (0040105c)
   0040105E   mov         word ptr [ebp-6],offset plus+22h (00401062)
   00401064   mov         word ptr [ebp-4],offset plus+28h (00401068)
   0040106A   mov         word ptr [ebp-0Ch],offset plus+2Eh (0040106e)
   00401070   movsx       eax,word ptr [ebp-0Ch]
   00401074   mov         cx,word ptr [ebp+eax*2-8]
   00401079   mov         word ptr [ebp-6],cx
   0040107D   pop         edi
   0040107E   pop         esi
   0040107F   pop         ebx
   00401080   mov         esp,ebp
   00401082   pop         ebp
   00401083   ret

arr1[i]=[ebp+eax*2-8]

int 型

1. 源码

   void plus()
   {
   	int arr1[3] = {1,2,3};
   	int i=0;
   	arr1[1]=arr1[i];

   }

2. 反汇编

   00401040   push        ebp
   00401041   mov         ebp,esp
   00401043   sub         esp,50h
   00401046   push        ebx
   00401047   push        esi
   00401048   push        edi
   00401049   lea         edi,[ebp-50h]
   0040104C   mov         ecx,14h
   00401051   mov         eax,0CCCCCCCCh
   00401056   rep stos    dword ptr [edi]
   00401058   mov         dword ptr [ebp-0Ch],1
   0040105F   mov         dword ptr [ebp-8],2
   00401066   mov         dword ptr [ebp-4],3
   0040106D   mov         dword ptr [ebp-10h],0
   00401074   mov         eax,dword ptr [ebp-10h]
   00401077   mov         ecx,dword ptr [ebp+eax*4-0Ch]
   0040107B   mov         dword ptr [ebp-8],ecx
   0040107E   pop         edi
   0040107F   pop         esi
   00401080   pop         ebx
   00401081   mov         esp,ebp
   00401083   pop         ebp
   00401084   ret

arr1[i]=[ebp+eax*4-0Ch]

数组[变量+常量]

1. 源码

   void plus()
   {
   	int arr1[3] = {1,2,3};
   	int i=0;
   	arr1[1]=arr1[i+1];

   }

2. 反汇编

   00401040   push        ebp
   00401041   mov         ebp,esp
   00401043   sub         esp,50h
   00401046   push        ebx
   00401047   push        esi
   00401048   push        edi
   00401049   lea         edi,[ebp-50h]
   0040104C   mov         ecx,14h
   00401051   mov         eax,0CCCCCCCCh
   00401056   rep stos    dword ptr [edi]
   00401058   mov         dword ptr [ebp-0Ch],1
   0040105F   mov         dword ptr [ebp-8],2
   00401066   mov         dword ptr [ebp-4],3
   0040106D   mov         dword ptr [ebp-10h],0
   00401074   mov         eax,dword ptr [ebp-10h]
   00401077   mov         ecx,dword ptr [ebp+eax*4-8]
   0040107B   mov         dword ptr [ebp-8],ecx
   0040107E   pop         edi
   0040107F   pop         esi
   00401080   pop         ebx
   00401081   mov         esp,ebp
   00401083   pop         ebp
   00401084   ret

arr1[i+1]=[ebp+eax*4-8]

数组[数组[变量]]

1. 源码

   void plus()
   {
   	int arr1[5] = {1,2,3,4,5};
   	int i=0;
   	int arr2[5];
   	arr2[1]=arr2[arr1[i]];

   }

2. 反汇编

   00401040   push        ebp
   00401041   mov         ebp,esp
   00401043   sub         esp,6Ch
   00401046   push        ebx
   00401047   push        esi
   00401048   push        edi
   00401049   lea         edi,[ebp-6Ch]
   0040104C   mov         ecx,1Bh
   00401051   mov         eax,0CCCCCCCCh
   00401056   rep stos    dword ptr [edi]
   00401058   mov         dword ptr [ebp-14h],1
   0040105F   mov         dword ptr [ebp-10h],2
   00401066   mov         dword ptr [ebp-0Ch],3
   0040106D   mov         dword ptr [ebp-8],4
   00401074   mov         dword ptr [ebp-4],5
   0040107B   mov         dword ptr [ebp-18h],0
   00401082   mov         eax,dword ptr [ebp-18h]
   00401085   mov         ecx,dword ptr [ebp+eax*4-14h]
   00401089   mov         edx,dword ptr [ebp+ecx*4-2Ch]
   0040108D   mov         dword ptr [ebp-28h],edx
   00401090   pop         edi
   00401091   pop         esi
   00401092   pop         ebx
   00401093   mov         esp,ebp
   00401095   pop         ebp
   00401096   ret

   arr2[arr1[i]]=[ebp+eax4-14h];[ebp+ecx4-2Ch]

总结

• 数组1[变量]：将变量值存储到寄存器 eax 中，然后再使用 eax*数据宽度-数组最低地址 来定位数组的位置[ebp+eax*数据类型宽度-数组最低地址]

• 数组1[变量+常数]：[ebp+eax*数据类型宽度-(数组最低地址+常量)]

• 数组2[数组1[变量]]：先计算数组1，[ebp+eax数据类型宽度-数组最低地址]。再计算数组2[ebp+ecx数据类型宽度-数组最低地址]
